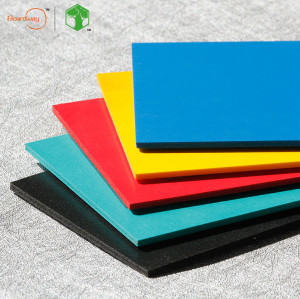

Rigid Co-extruded PVC Foam Board For Furniture Kitchen Cabinet Vehicle Cabinet
Rigid Co-extruded PVC Foam Board For Furniture Kitchen Cabinet Vehicle Cabinet

Item specifics

Material
Polyvinyl chloride
Custom specifications
Length, width, thickness, density, color
Processing services
Cut to size, cnc engraving, laminating, printing
Supporting services
OEM, ODM, sourcing, prototyping, assembly
Packing method
PE bag, carton, pallet
Transportation mode
FCL/LCL by sea, air, road and rail

Product review

Description

Co-extruded PVC Foam

Co-extruded PVC foam board is a rigid PVC foam board with an expanded closed-cell core and thin non-foamed surfaces, also called three-layer PVC foam board. It is a member of the PVC foam board family.

Co-extruded PVC foam is mainly composed of polyvinyl chloride (PVC) resin, adding other additives according to performance requirements and production needs, produced by foam extrusion technology.

Compared with PVC celuka foam board, it has a super glossy and harder surface. This feature allows it to be used directly without painting or laminating surface materials. Co-extruded PVC foam board can be easily sawed, CNC cut, drilled and nailed. Its most popular uses are storage rack & cabinet for modified van, bathroom and kitchen cabinets, interior decoration, partition walls and furniture for humid environments.

Product Details
Different from the common PVC foam board, the advantage of the co-extruded PVC foam boards is its particularly hard and smooth surface, no need to paint when applied, so it is more environmentally friendly and causes less pollution to the earth. It can not only be produced into a single-color board, but also can be produced into a two-color board. The color can be customized according to your needs.
Single-color foam PVC
All-in-white foam PVC
Two-color foam PVC
Compliance
 ISO 17226-1:2021
 RoHS compliant
 REACH compliant
 EN 14372:2004
 ASTM E84-17
 ISO 27528:2009
 ISO 1926:2009
 GB 8624-2012
 GB 18580-2001

Application


Ready-to-use multifuction board, advertising signs and display, engraving letters, interior and exterior decoration, bathroom & kitchen cabinet, BBQ module, cupboard, partition wall, screen panel, furniture board for marine and humid environment, sauna room, outdoor furniture, and automotive industry, such as lining for van, flooring for bus, storage rack & cabinet for modified van (ambulance, express delivery vehicle, utility vehicle, recreational vehicle).

Welcome to explore more solutions with us.

Learn More

Wardrobe, Van Liner

Other members of the PVC foam board family
Advantage
Good flatness -uniform thickness, flat pvc foam board
Ready-to-use -glossy surface, no need to paint or laminate
Cost-efficient -Reduce the weight of the vehicle and reduce gasoline consumption
Nail-holding strength -tighten the screws without slipping
UV resistance -slow aging and yellowing speed in outdoor use
Water-proof & mildew-proof -suitable for outdoor and humid environments
Fire performance -common pvc foam board is self-extinguishing, and fire-resistant enhanced boards meet ASTM E84 Class A
Suitable as substrate -light in weight, can be used as substrate for laminating pvc film or gluing signs
Strong processability -can be easily drilled, nailed, sawed, cut, planed, glued, sanded, painted
Sound insulation -suitable for used as partition walls in mobile offices
Specification
Length

2440mm, 3050mm, 3600mm, 4800mm, 5490mm, length can be customized

Width

1220mm

Thickness

3mm - 20mm

Density

0.4 - 0.9 g/cm3

Surface

Smooth, Glossy

Color

White, black, grey are standard color. Custom colors are available.

White

Black

Grey

Brown

Red

D. Red

Orange

Yellow

Blue

L. Blue

Green

L. Green

Additional Services
pvc foam board with protective film
Protective film
Cover the board with protective film to avoid scratches. Transparent film and custom film with your logo are available. One side or both sides can be covered.
wpc foam board packed by pallets
Custom packaging
Our packing materials are as follows, plastic film or PE bags for wrapping, fumigation-free wooden pallet, carton, metal pallet. Custom packaging is available.
Learn More
pvc foam board wood grain
Custom surface texture
The surface texture of the pvc foam board is realized by the pressing roller during the production. Customized a press roller can produce your unique texture board.
customized pvc foam board
Processing services
Cut to size, CNC routing, bevelling, chamfering, laminating, sanding, printing, hot bending, etc.
Learn More
Boardway provides OEM ODM services
Supporting services
Such as sourcing & procurement, prototype making, module assembly, OEM, ODM services.
Options For Customers
For trader, wholesalers
We are glad to provide you with expanded PVC foam board of different grades and performance, such as common boards, flame retardant class A boards, UV-resistant reinforced boards, screw retention enhanced boards, strength or toughness reinforced boards. The size, thickness and density can be customized according to your requirements. Accept mixed specification shipments.
pvc foam board with transparent film
Black pvc foam board
Boardway pvc foam board warehouse
For online shops, home center, retail stores
We are able to provide expanded PVC foam board with common sizes, such as 4'x6'、4'x8'、4'x10', etc., and pack them into individually packages to facilitate distribution and retail. If your product needs to be sold with other accessories, such as hardware, hinge, aluminium profile, etc., we have the advantage of resources and are happy to help you purchase, labelling and custom packaging.
pvc foam board cut to small size
pvc foam board Individually packages
18''x24'' sign boards
For manufacturers, designers
Supporting services of "products + processing" is our advantage. The PVC foam board can be customized and produced based on your application requirements. We then process the boards according to your needs, test whether the boards meet your standards. Finally to the product proofing and mass production.
pvc foam boards custom processed and assembled into kitchen cabinet
Want to know what processing services Boardway provides?
